Arrow 9f   Usage   Trouble shooting   Tag gun Comparison   Product Gallery





The Arrow 9F Taggun Pistol Grip Tool is one of the best fine tag gun available, and it is fitted with 'Arrow D191' fine taggun needle. This fine gun is recommend by most users in laundry industry for creating washing and whisker effects on denims and jeans, socks industry for tagging multiple pair of socks, showrooms for tagging expensive and delicate sarees, etc.. Easy usage in attaching price tags makes this fine tag gun lable gun very recommendable.

A comfortable design, coupled with a 78gram light weight body, makes it highly suitable for regular use. This tag gun is ideal to use with delicate, standard, medium, and heavy weight fabrics. This tagging gun works not only with the regular 50 piece strip of tagpin, but also with the 100 piece and 125 piece strip of plastic kimble (regular fine pins / micro fine pins). Arrow fine tag pins and spare needles for this tag gun are sold separately. It works with Fine Tagpins, Micro-Fine Tag Pin, Micro Fine I-Pin. We suggest its best use with our ARROW Fine brand of tagpins. For spare needles we suggest you to use with 'Arrow D191', 'Arrow B171', 'Arrow - Y with step', 'Arrow - Y without step' or with 'Arrow - For I Pin' tag gun needles (all are Mark II type of needles).

The plastic fine kimbles / fine tagpins are tagged smoothly with help of improved internal lever system. There is no use of recycled material. We only use virgin material which improves durability and quality of product. Our raw-materials are in compliance with REACH, AzO, CFC, DMF, Phthalates, RoHS, etc. Lace free needle cap, reduces irritation which occurs otherwise with use of laced needle caps. While the gun is being used, the needle cap can be fixed at the rear side, to avoid misplacement. The trigger in this fine taggun is in step-free design, which reduces the pressure required to do tagging.

Content: 1 Arrow 9F tag gun fitted with a safety cap and 'Arrow D191' replacement needle.

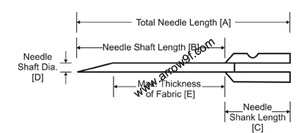

TAGGUN NEEDLE DIMENSIONS


D191 NEEDLE

d191 needle, mark2 standard needles
Total Needle Length [A]: 26.00mm
Needle Shaft Length [B]: 13.50mm
Needle Shank Length [C]: 12.50mm
Needle Shaft Dia. [D]: 1.30mm
Max. Thickness of Fabric [E]: 7.00mm




For I Pin
ipin plastic needle, for ipin
Total Needle Length [A]:25.00mm
Needle Shaft Length [B]:10.00mm
Needle Shank Length [C]: 15.50mm
Needle Shaft Dia. [D]:1.30mm
Max. Thickness of Fabric [E]:5.00mm

Y With Step
y with step,mark2 steel standard
Total Needle Length [A]:29.50mm
Needle Shaft Length [B]:12.50mm
Needle Shank Length [C]:17.00mm
Needle Shaft Dia. [D]:1.40mm
Max. Thickness of Fabric [E]:6.00mm

Y Without Step
y without step
Total Needle Length [A]:31.00mm
Needle Shaft Length [B]:19.00mm
Needle Shank Length [C]:12.00mm
Needle Shaft Dia. [D]:1.50mm
Max. Thickness of Fabric [E]:8.00mm

B 171 Needle
b171 needle
Total Needle Length [A]:31.00mm
Needle Shaft Length [B]:18.50mm
Needle Shank Length [C]:12.50mm
Needle Shaft Dia. [D]:1.50mm
Max. Thickness of Fabric [E]:8.00mm
